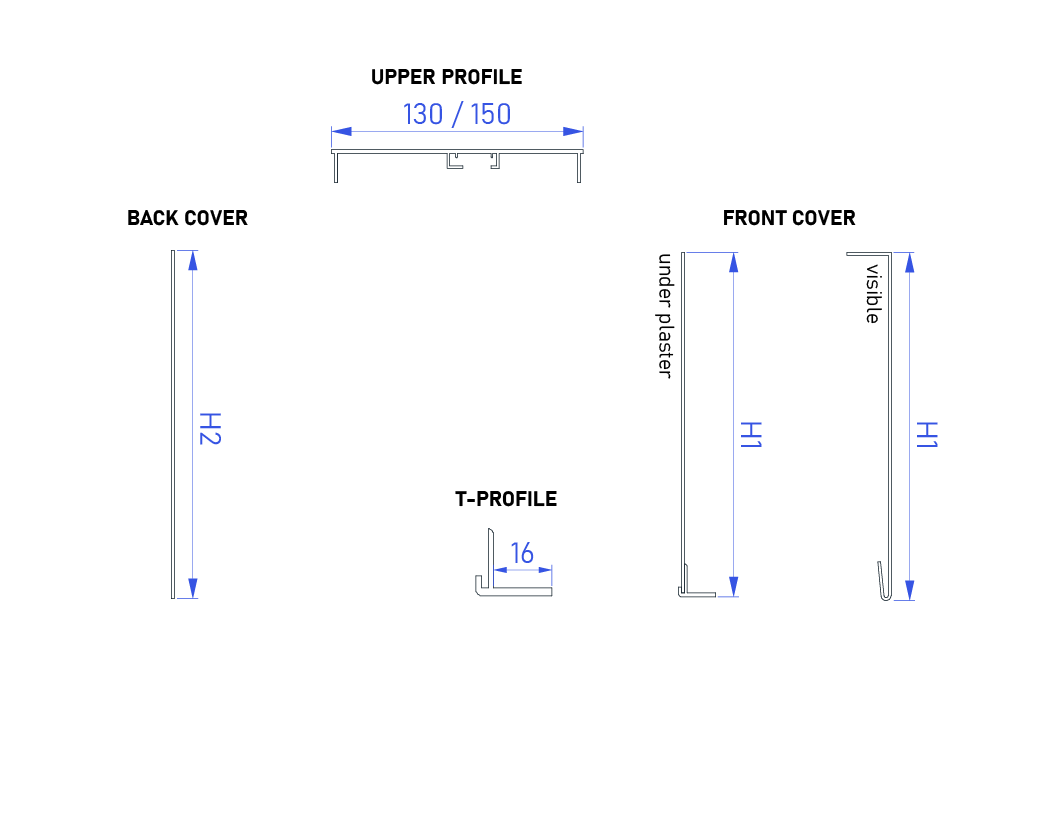

COVER

  • COMPOSITION: rear cover, upper profile, front cover, T-profile
  • OPTIONS: visible 130, visible 150, under plaster 130, under plaster 150
  • MASK THICKNESS: 1.5 mm
  • MASK HEIGHT (H1): 150 mm, 180 mm, 200 mm, 230 mm, 250 mm, 280 mm, 300mm
  • COLORING: front, front+inside, all in color
  • COLORS: white, gray (RAL 9006, RAL 9007, RAL 7016, DB 703), brown (RAL 8019), RAL-X

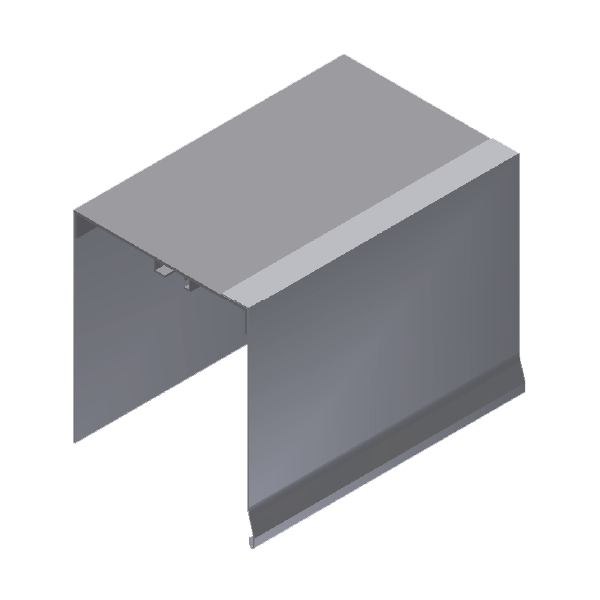

Visible

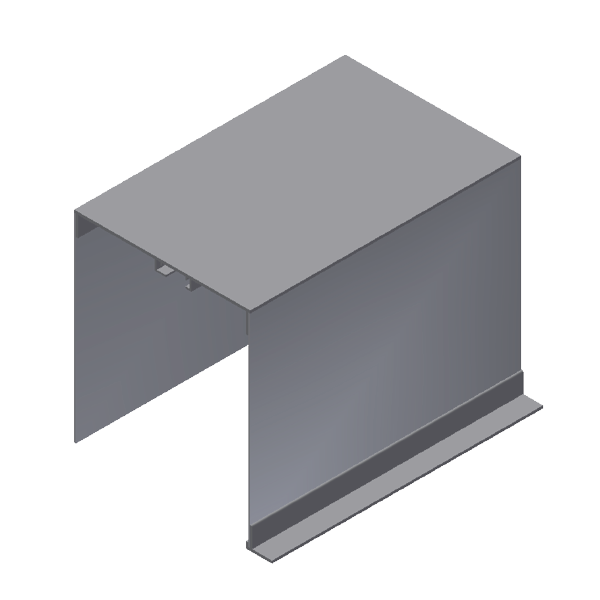

Under plaster

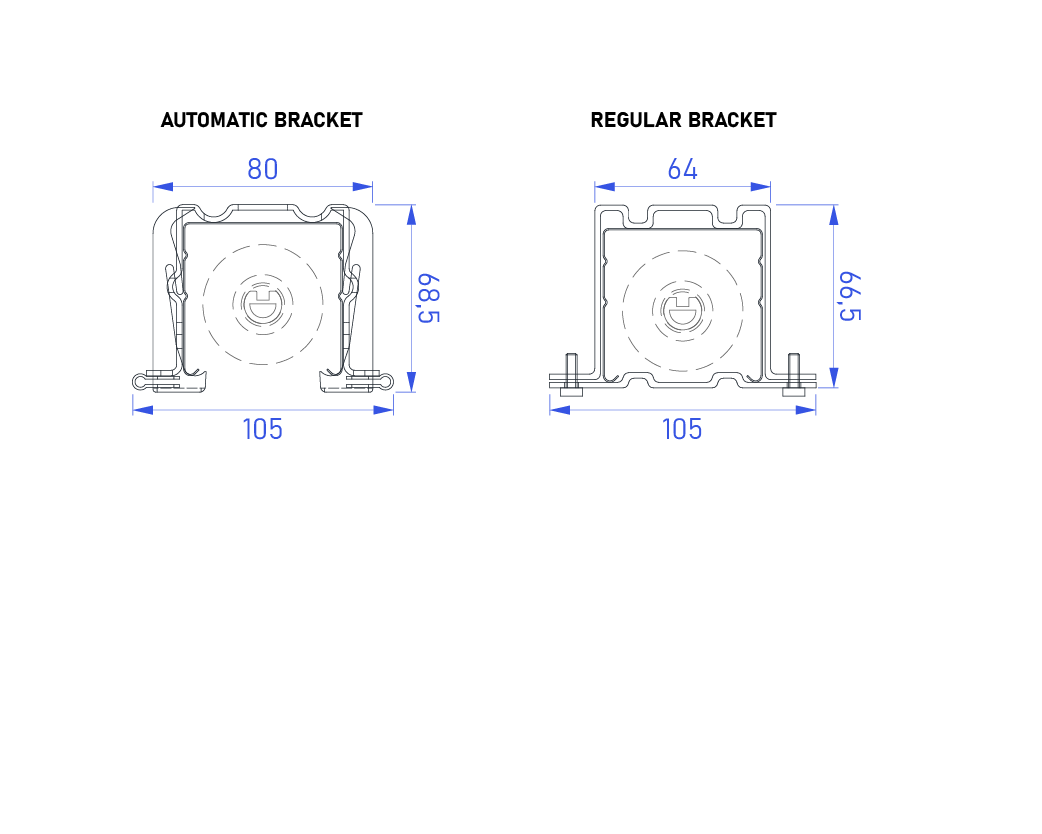

AUTOMATIC BRACKET

  • Enables faster and easier attachment of the upper profile to the bracket.
  • DIMENSIONS: 80 x 68.5 mm (105 mm in the open position)
  • OPTIONS: automatic bracket, regular bracket

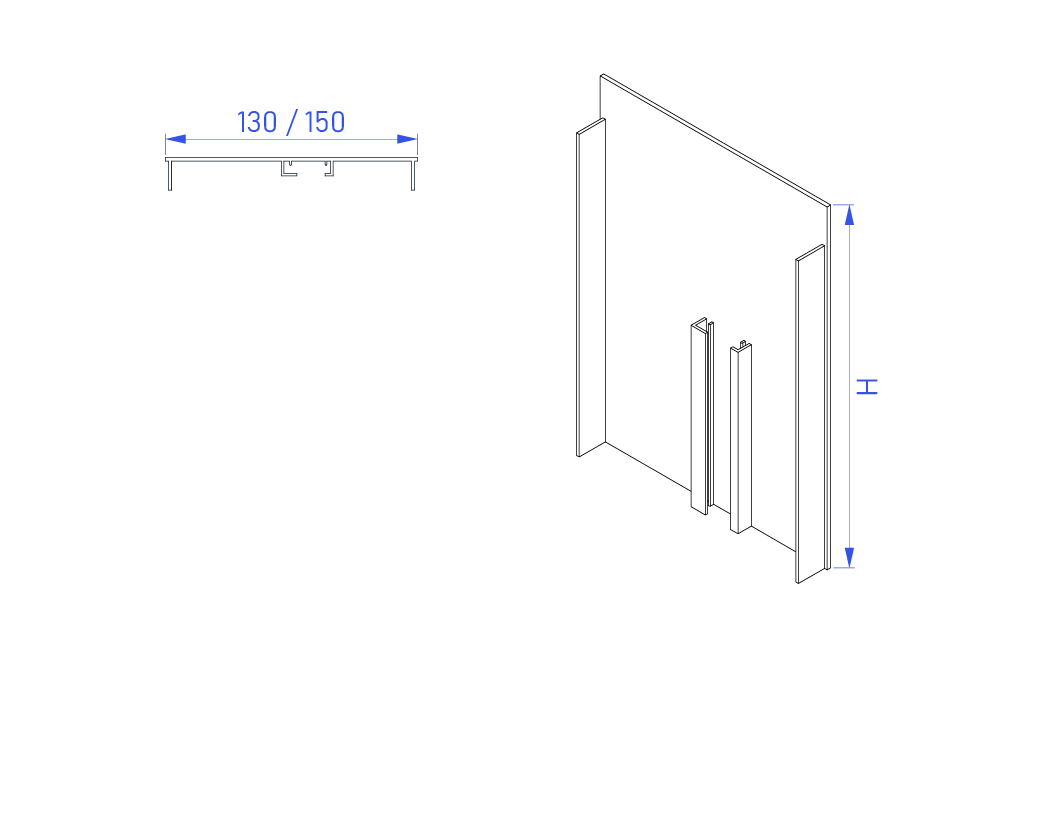

CONSOLE

  • OPTIONS: x=130, 150 mm
  • HEIGHT (H): 200, 250, 300 mm

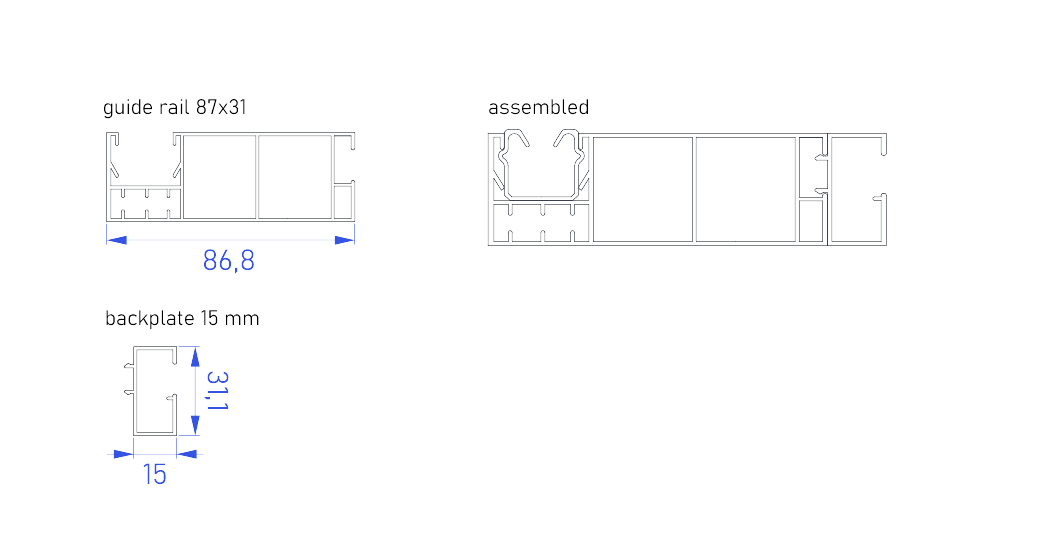

KRATER GUIDE RAIL COMPOSITION

  • ALUMINUM powder-coated
  • DIMENSIONS: 31 x 87 mm
  • COLORS: white, dark chocolate, silver, anthracite, RAL 9007, raw color
  • Possibility of a seal.
  • ADDITIONAL: backplate for Krater guide (Krater 150)

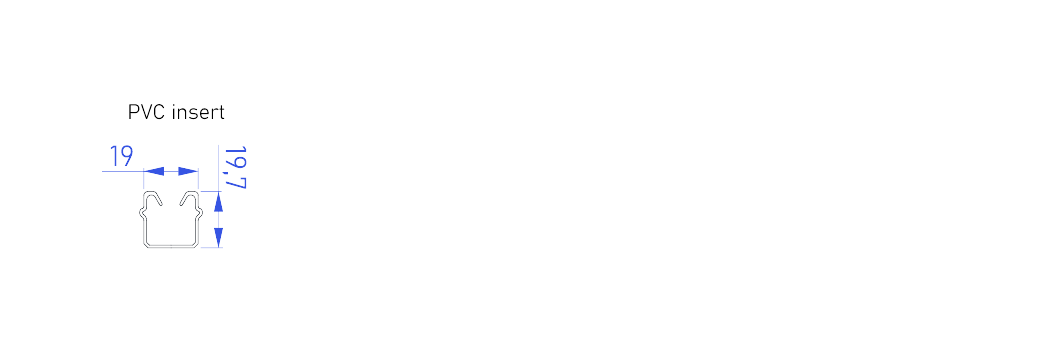

PVC INSERT

  • PVC
  • DIMENSIONS: 19,7 x 19 mm
  • COLOR: black

CONNECTING PLATE

  • The plate is screwed into the center of the console, connecting the guide with the cover.

TILT AND RAISE MECHANISM

  • 80/90 mm
  • For C or Z-shaped slats - universal.
  • DIMENSIONS: x=6mm/8mm
  • ADVANTAGES of closed mechanism - prevention of insect accumulation; possibility of height leveling with a regulatory mechanism.
  • USE: For tilting slats - light regulation and for raising and lowering the entire blind.

BRACKET FOR BEVEL GEAR

  • 80/90 mm
  • For profile 56 x 58 mm
  • Bottom screwing.
  • USE: Fixes the bevel gear, adjustable inclination possible.

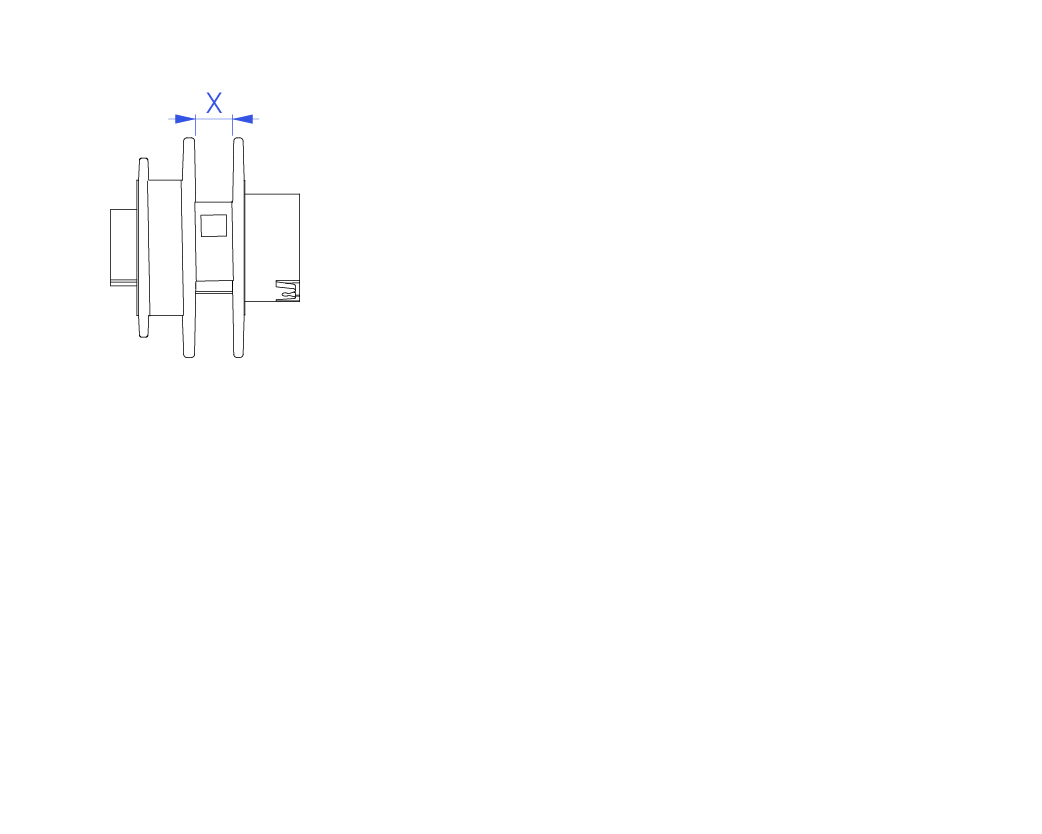

END COURSE SQUARE

  • 80/90mm
  • Axle M/round
  • USE: For adjusting the upper and lower positions of the blinds; to prevent overturning or tightening.

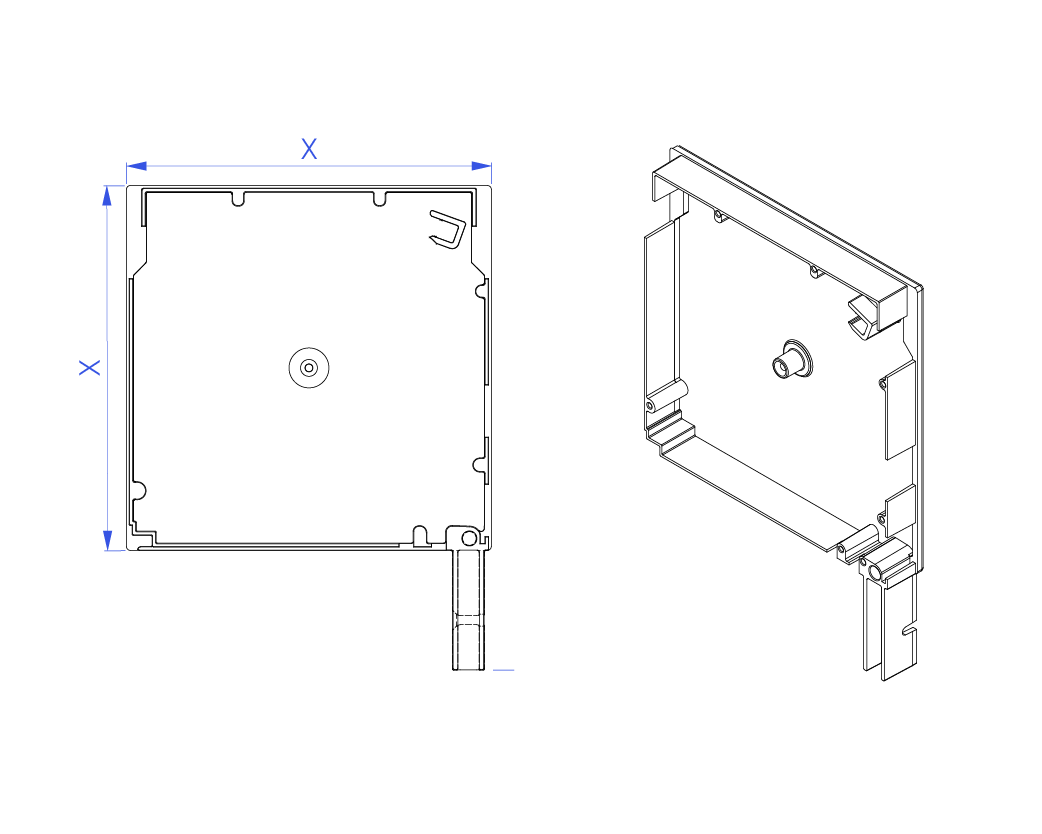

ALU end cap console 90°

  • Extruded aluminum
  • CABINET SIZE (x): 13,7cm, 15cm, 16,5cm, 18cm, 19cm
    • Sizes are depend on cabinet types, roller blind height, spindle type and version (with or without mosquito net)

Mosquito net holder

  • built into the console (console 90°)

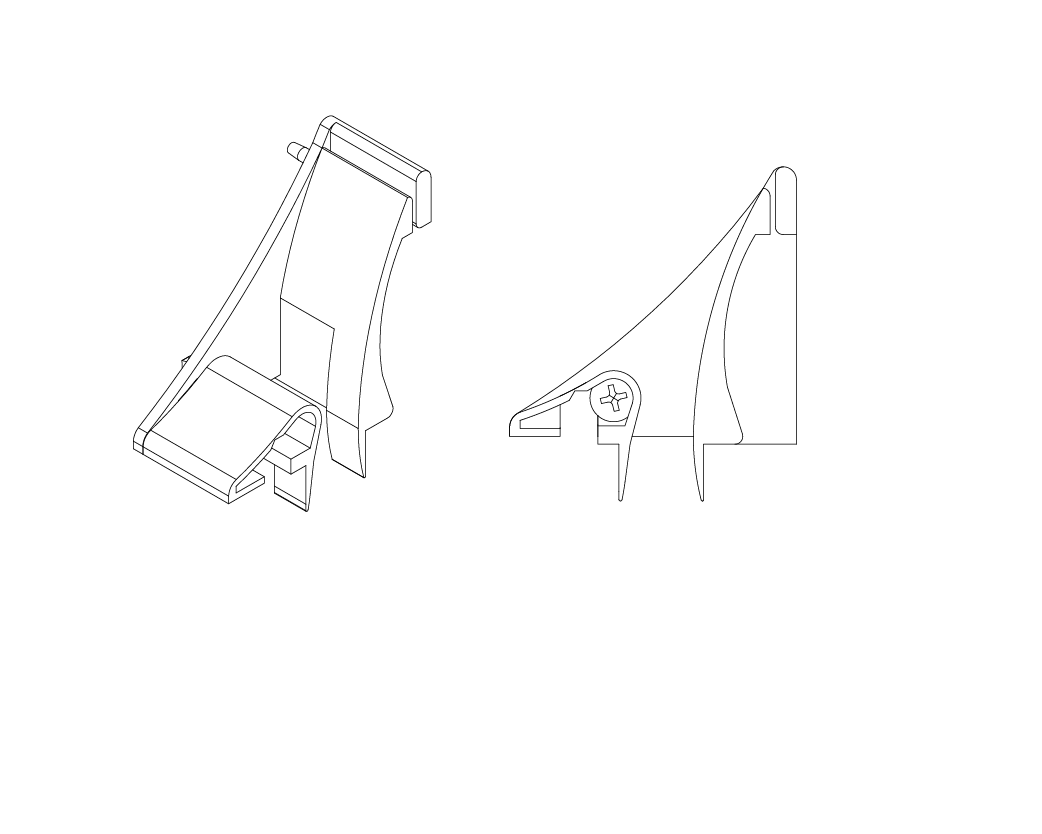

Plastic entry guide

  • Two-part assembly.
  • Possibility of replacement and servicing.

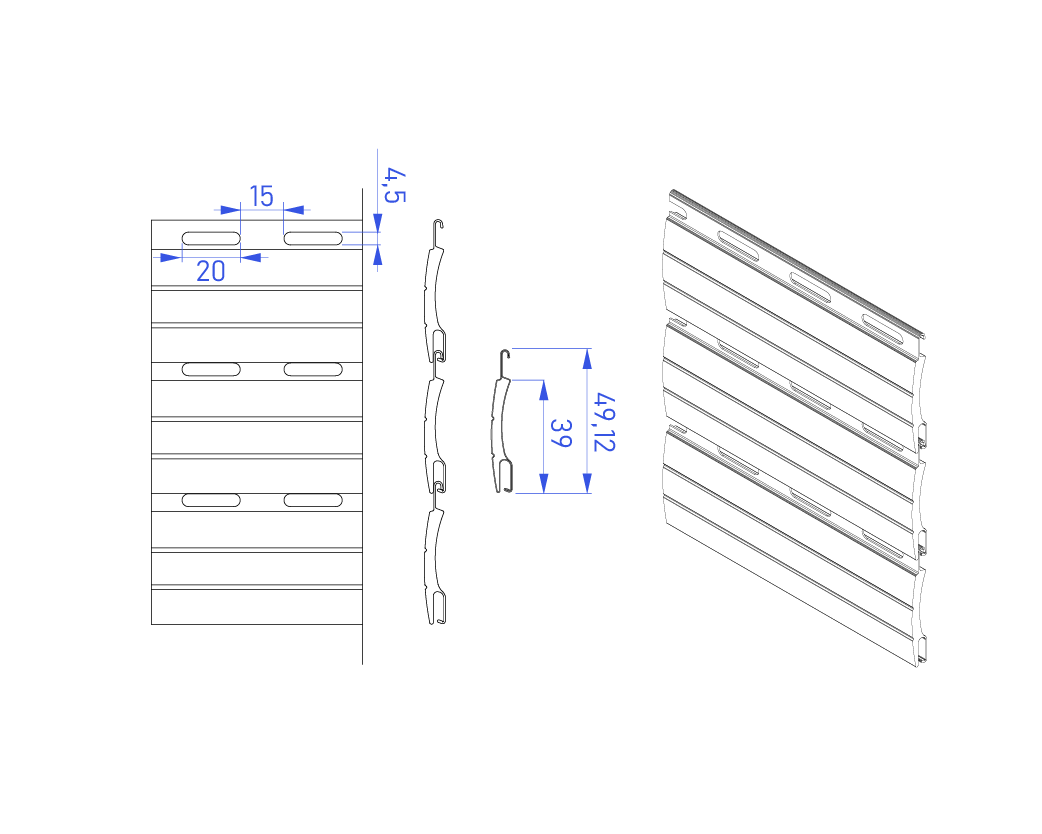

Roller shutter Falcon

  • Stronger aluminum - suitable for larger dimensions.
  • ADVANTAGES:
    • 700% more light
    • 700% more airflow
    • anti-theft protection in air mode (It prevents the roller shutter from lifting with a force less than 1000 N.)
    • premium look
    • model and patent protected
  • SLATS COLORS: white, dark choco, silver, beige, antico grigio, anthracite, DB 703

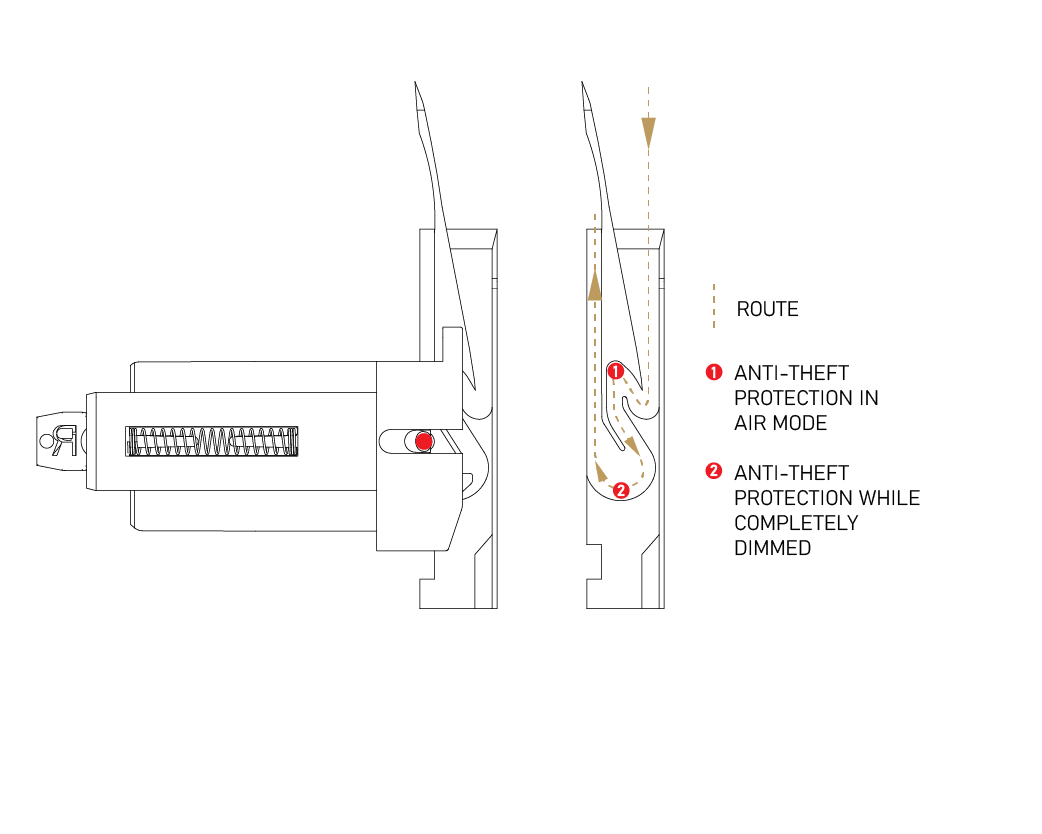

Easy end lock for bottom slat-KLIK (FALCON)

  • Model and patent protected.
  • Only in case of mounting electric motor with receiver - ELERO ROLLMOTION + ADC FALCON.

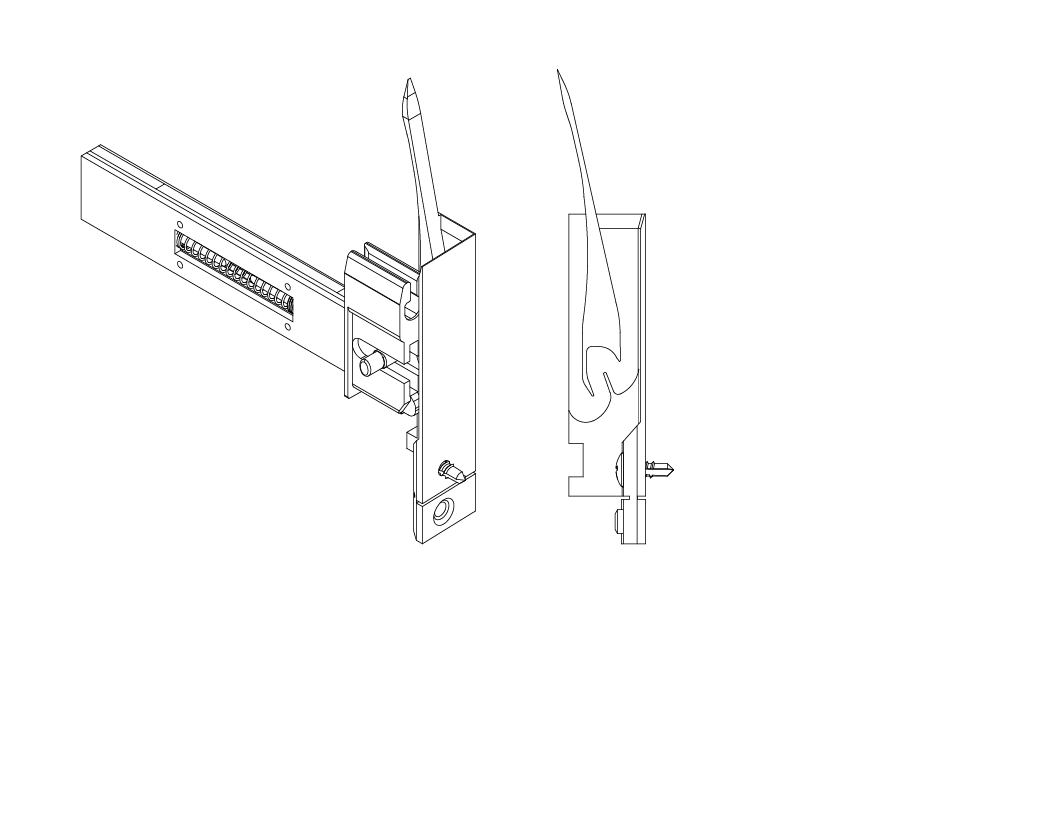

Easy end lock for Mosquito net

  • Model and patent protected.
